Fiber Amplifiers

The fiber amplifiers come either in the MAKO & SKYLINE OEM Modules or BENCHTOP units.

1µm Applications
1.5µm Applications
2µm Applications
AMP Accessories
NEWmako

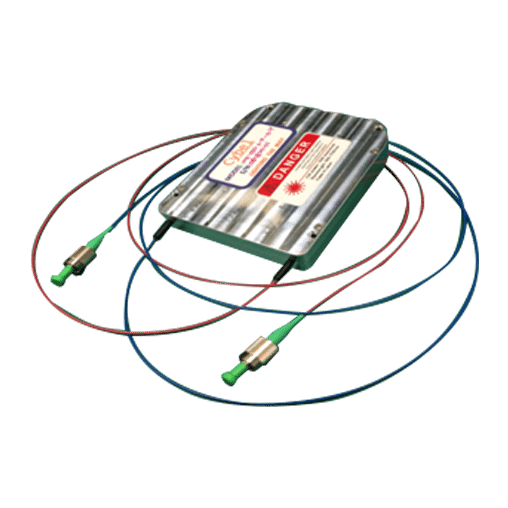

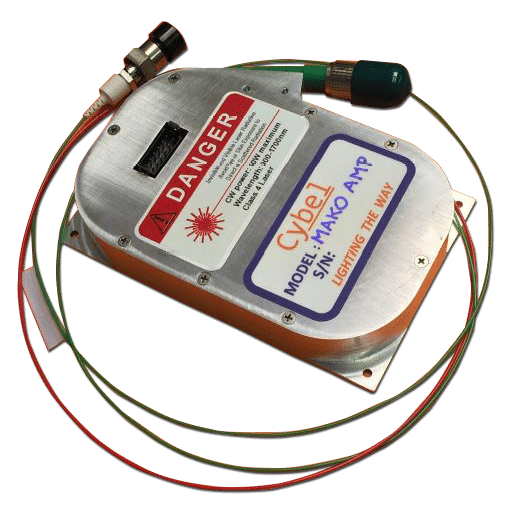

The MAKO Fiber Amplifier Series is an efficient, ultra-compact (97x78x15 mm³ ) and ultra-light, all-fiber OEM unit specifically designed for many applications requiring small size. This also features low noise, and high saturation output power (1W). They are available in standard or polarization-maintaining (PM) fiber versions for narrow-linewidth lasers (<100 kHz). The module comes equipped with RS232 computer interface for easy integration in end-user system application

NEWskyline

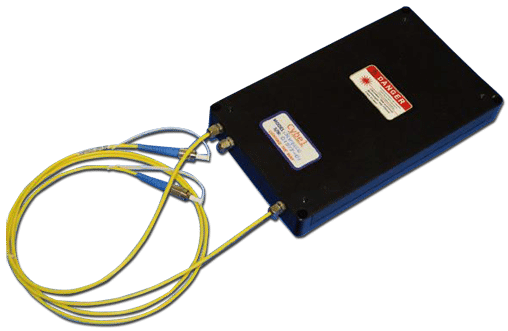

The SKYLINE Fiber Amplifier Series provides a combination of low noise amplification, high gain and large output power (>15W) in an efficient OEM package (200x150x43 mm³ ). The amplifiers come in standard and polarization-maintaining (PM) versions and can be customized to meet your specific signal, whether continuous wave or pulsed. Each OEM amplifier unit is carefully designed to amplify very narrow linewidth (kHz) or high baud-rate communication signals with low impairments. This amplifier module is rugged, compact and energy-efficient, and is equipped with RS232 and USB computer interface

NEWbenchtop

The CYBEL BENCHTOP is a user-friendly instrument suitable for manufacturing and  R&D  applications. The BENCHTOP has an exceptionally stable and reliable performance with turnkey operation. It offers an analog user front panel interface and a USB computer control interface. The front panel has a high definition LCD, which displays the different control parameters and allows continuous adjustment of the output power. The same parameter control can be achieved via the USB port.

1µm Applications

OEM

BT

MAKO-AMP-1030: Wavelengths between 1025-1035nm. Average output power 500mW. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAKO-AMP-1064: Wavelengths between 1050 and 1090nm. Average output power 1W. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAKO-S-AMP-1064:Wavelengths between 1050-1090nm, fiber amplifier designed to operate reliably in a space environment. Average output power 1 W, Control interface RS-232, Temp. Alarm included, Control mode: ACC

pdf-icon1OEM Data Sheet

RFQ

MANTARAY-AMP-1064: Wavelengths between 1050-1090nm. Input signal linewidth 10kHz. Output signal power 1-10W. Control mode: ACC and APC. Control interface RS-232 and USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MERCURY-AMP-1064 Wavelengths between 1050-1090nm, fiber amplifier engineered for reliable operation in space environments. Average output power 2 W, Control interface RS-232, Control mode: ACC and APC.

pdf-icon1OEM Data Sheet

RFQ

METEOR-HBT-AMP-1064  Wavelengths between 1050-1090nm, half-benchtop fiber amplifier. The amplifier provides high small signal gain (>30 dB) and a saturated output power of over 1W. Control interface USB, Control mode: ACC.

pdf-icon1OEM Data Sheet

RFQ

HOPA-AMP-1064: Wavelengths between 1050-1090nm. Output power up to 25W. Control mode: ACC and APC. Control interface RS-232 and USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MANTARAY-AMP-1110 Wavelengths Between 1100 nm – 1120 nm, single mode, single frequency fiber amplifier that delivers up to 10 W of output power with near diffraction limited output beam (i.e. M2≈ 1.1). Control interface RS-232, Control mode: ACC and APC.

pdf-icon1OEM Data Sheet

RFQ

1.5µm Applications

OEM

BT

HOPA-AMP-1550: Wavelengths between 1535-1565nm. Output power up to 25W. Control mode: ACC and APC. Control interface RS-232 and USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAKO-AMP-1550: Wavelengths between 1535-1565nm. Small signal gain >40dB. Output power >1W. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAKO-S-AMP-1550 Wavelengths between 1535-1565 nm, fiber amplifier designed to operate reliably in a space environment. Average output power 1 W, Control interface RS-232, Temp. Alarm included, Control mode: ACC

pdf-icon1OEM Data Sheet

RFQ

MERCURY-AMP-1550 Wavelengths between 1535-1565 nm, fiber amplifier engineered for reliable operation in space environments. Average output power 2 W, Control interface RS-232, Control mode: ACC and APC.

pdf-icon1OEM Data Sheet

RFQ

METEOR-HBT-AMP-1550  Wavelengths between 1535-1565nm, half-benchtop fiber amplifier. The amplifier provides high small signal gain (>30 dB) and a saturated output power of over 1W. Control interface USB, Control mode: ACC.

pdf-icon1OEM Data Sheet

RFQ

STINGRAY-AMP-1550: Wavelengths between 1535-1565nm. Output power up to 15W. Control mode: ACC and APC. Control interface RS-232 and USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MORAY-AMP-1600: Wavelengths between 1570 to 1610nm. Output power up to 10W. Signal linewidth 2MHz. Control mode: ACC and APC. Control interface USB.

pdf-icon1BT Data Sheet

RFQ

2µm Applications

OEM

BT

PERSEUS-AMP-1760: Thulium doped fiber amplifier. Wavelengths between 1750 and 1900 nm. Output power from 1 to 5 W. Different Control interface RS-232 and USB.

pdf-icon1

OEM Data Sheet

pdf-icon1

BT Data Sheet

RFQ

MAKO-AMP-1900: Wavelengths between 1850 and 2020nm. Small signal gain >40dB. Output power 1Wfor 1mW input. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAKO-AMP-2000: Wavelengths between 2000 and 2100nm. Output power 1mw - 500mW. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

SCIROCCO-AMP-1950: Thulium doped fiber amplifier. Wavelengths between 1880 and 2020nm. Output power 1 to- 5W. Control interface RS-232 and USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAESTRO-AMP-2000: Thulium doped fiber amplifier. Wavelengths between 1900-2020nm. Output power 10W. Control mode: ACC and APC. Control interface: RS-232 & USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MISTRAL-AMP-2051: Thulium doped fiber amplifier. Wavelengths between 2045-2055nm. Output power: 1 to 5W. Control mode: ACC and APC. Control interface: RS-232 & USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

HELIOS-AMP-2100: Holmium doped fiber amplifier. Wavelengths between 2000-2130nm. Output power 1to 5W. Control mode: ACC and APC. Control interface: RS-232 & USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

THALYS-AMP-2090: Wavelengths between 2030 and 2110nm. Pave: 1W, 200W peak power, and 10μJ of energy for 50ns pulses and 100kHz freq rep. rate. Control interface: RS-232 & USB.

pdf-icon1OEM Data Sheet

RFQ

CALIPSO-AMP-2121 Holmium doped fiber amplifier. Wavelengths between 2100 - 2130nm. Output power up to 2W. Control mode: ACC. Control interface: RS-232 & USB.

pdf-icon1OEM Data Sheet

RFQ

Amplifier Accessories

Cybel offers heat sinks for OEM MAKO and SKYLINE fiber amplifiers and lasers.
High power attenuators, self heterodyne linewidth measurement systems are available.

RADIANT: is a passive heat sink designed for MAKO OEM module, either for amplifiers or lasers. It dissipates power up to 20W

pdf-icon1Data Sheet

RFQ

VORTEX: is a forced-air heat sink designed for MAKO OEM module, either for amplifiers or lasers. Vortex heat sink uses an air forced design that stabilizes the operating temperature of the Mako and dissipates power up to 20W.

pdf-icon1Data Sheet

RFQ

IKARUS: is a forced-air heat sink for the OEM SKYLINE module, either for amplifiers or lasers. This module is designed for tabletop applications. It is an air-cooling design that stabilizes the temperature of the Skyline and can dissipate power up to 170W.

pdf-icon1Data Sheet

RFQ

POLAR: is a liquid cooling plate system designed for SKYLINE OEM amplifiers or lasers. This module has a cooling capacity of 300W.

pdf-icon1Data Sheet

RFQ

GLOW is a passive heat sink for SKYLINE OEM module, either for amplifiers or lasers. It dissipates power up to 170W.

pdf-icon1Data Sheet

RFQ

ARCTIC-1550 is a benchtop self-heterodyne system with a bandwidth from 1510 to 1580nm. This system measures linewidth, stability in time with an electrical spectrum analyzer (ESA) under two modes: CW and pulse.

pdf-icon1Data Sheet

RFQ

ARCTIC-1064 is a benchtop self-heterodyne system with a bandwidth from 1020 to 1100nm. This system measures linewidth, stability in time with an electrical spectrum analyzer (ESA) under two modes: CW and pulse.

pdf-icon1Data Sheet

RFQ

PLUTO is a High Power Attenuator benchtop unit for fixed attenuation of 20, 30,40 & 50dB for 1064nm, 1550nm, and 2000nm bandwidth; It is ideal for high-power fiber output attenuation.

pdf-icon1Data Sheet

RFQ
