Fiber Lasers

The fiber lasers come either in the MAKO & SKYLINE OEM Modules or BENCHTOP units.

1µm Applications
1.5µm Applications
2µm Applications
ASE Sources
LASER Accessories
NEWmako

The MAKO Fiber Laser Series is a pulsed OEM fiber laser high peak power (>5 kW) Pulses with power greater than 1W with near-Gaussian profile (M²<1.1) output beam. The MAKO pulse width (2 to 60ns) and repetition rate (10 to 4,000 kHz) are continuously adjustable through an analog input control. Output power is also adjustable through a separate digital control. The MAKO OEM is an efficient, ultra-compact (97x78x15mm³ ) and ultra-light, all-fiber OEM unit specifically designed for sensing applications requiring small size.

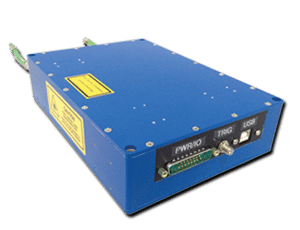

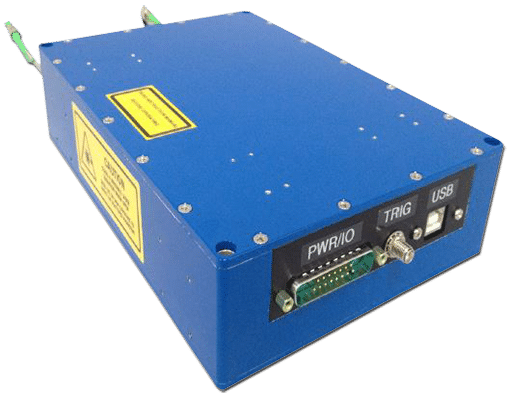

NEWskyline

The Skyline OEM Fiber Laser Series can produce nanosecond pulses with energies up to 40µJ, high peak power (>15 kW) and average output power greater than 15 W with near-diffraction-limited spot size. It comes in either standard or polarization-maintaining (PM) versions and can be customized to meet your specific signal for continuous wave (CW) or pulsed modes for scientific or industrial applications.

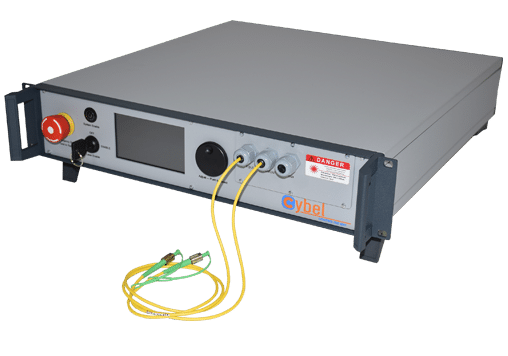

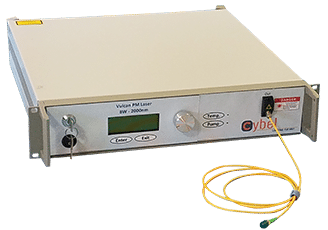

NEWbenchtop

The CYBEL BENCHTOP is a user-friendly instrument suitable for manufacturing and  R&D  applications. The BENCHTOP has an exceptionally stable and reliable performance with turnkey operation. It offers an analog user front panel interface and a USB computer control interface. The front panel has a high definition LCD, which displays the different control parameters and allows continuous adjustment of the output power. The same parameter control can be achieved via the USB port.

1µm Applications

OEM

BT

BEACON-1064 is a Quasi-CW (QCW) 25W pulsed fiber laser at 1064 nm. This laser delivers pulses from 250 μs to 10 ms over a wide range of repetition rates from 100 Hz to 2 kHz. With energy up to 250 mJ. This laser offers a control interface RS-232 and control mode ACC.

pdf-icon1OEM Data Sheet

RFQ

LASO-BT-1064 is a line sub-nanosecond and nano-second benchtop pulsed laser that deliver high power with adjustable pulse width and pulse repetition rate at 1064nm. This unit is designed to produce pulse width as short as 100ps and frequency repetition rate up to 100MHz from either an internal trigger or a user external trigger.

pdf-icon1BT Data Sheet

RFQ

MAKO-1030 Pulsed laser @ 1030nm pulse width 2-60ns, Pave: up to 1.5W and Ppeak up to 2.5kW. Control interface RS-232.

pdf-icon1OEM Data Sheet

RFQ

MAKO-NL-1030 Output signal linewidth <1MHz. Output power 500mW. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAKO-1064 Pulse width 4ns & 50ns, Pave: up to 1.2W and Ppeak up to 2.5kW, RPF 10-2000kHz. Control interface RS-232.

pdf-icon1OEM Data Sheet

RFQ

MAKO-NL-1064 Output power up to 1.5W. Signal linewidth <1MHz. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

SPACELIGHT-1064 Output power 5 to 10W, peak power 5-10kW. PRF 200kHz-1.5MHz, pulse-width 2-8ns, energy 40uJ. Control mode: ACC and APC. Control interface RS-232 and USB.

pdf-icon1OEM Data Sheet

RFQ

PROTEUS-1064 Operate CW and pulsed modes, wavelengths 1030-1090nm, 25GHz line broadening, 1W output in a CW, Ppeak 5kW, 2.5ns pulse-width at 100kHz PRF. Control interface RS-232, control mode ACC & APC.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

VULCAN-1064 Output power 5 to 20W. SNR 50dB at 5W. Control interface RS-232 and USB. Control mode ACC & APC.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

1.5µm Applications

OEM

BT

MAKO-1550 Ppeak 1.5kW 4ns pulses with a broad linewidth 7nm Pulse width (4 to 50ns) and PRF 10 to 2MHz. Control interface RS-232.

pdf-icon1OEM Data Sheet

RFQ

MAKO-1550+ Pave >1.5W, High pulse energy >30uJ, High peak power >10kW, pulse width 2-60ns, PRF 10-4.5 MHz. Control interface RS-232.

pdf-icon1OEM Data Sheet

RFQ

MAKO-NL-1550 Wavelength between 1540-1565nm. Output power >1W. Output signal linewidth <1MHz. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

VULCAN-1550 Output power up to 15W of CW output averaged power. Spectral width <1nm. Control interface RS- 232 & USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

SKYLIGHT-1550 SKYLINE Module Pave comes in 5W or 10W. Pulse width 2-8ns, PRF 200kHz-1.5MHz with high pulse energy up to 40uJ, Ppeak 10kW. Control interface USB & RS-232.

pdf-icon1OEM Data Sheet

RFQ

BEACON-1550 is a Quasi CW (QCW) up to 25 W pulsed fiber laser at 1550 nm. This laser delivers pulses from 250 μs to 5 ms over a wide range of repetition rates from 100 Hz to 2 kHz. With energy up to 250 mJ. This laser offers a control interface RS-232 and control mode ACC.

pdf-icon1OEM Data Sheet

RFQ

JET-1600 MAKO module: Wavelength 1540-1600nm. Output power of either 1 or 2W. Control interface RS-232.

pdf-icon1OEM Data Sheet

RFQ

2µm Applications

OEM

BT

BEACON-2000 is a Quasi CW (QCW) up to 20 W pulsed fiber laser at 2000 nm. This laser delivers pulses from 250 μs to 5 ms over a wide range of repetition rates from 100 Hz to 2 kHz. With energy up to 125 mJ. This laser offers a control interface RS-232 and control mode ACC.

pdf-icon1OEM Data Sheet

RFQ

PERSEUS-1800 offers a peak power up to 50 W, and pulses from 50 ns to 200 ns with a broad range of repetition rate from 500 kHz to 2MHz. wavelengths available from 1760 to 1950 nm and different Control interfaces RS-232 and USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

PERSEUS-NL-1900  Wavelengths from 1760 to 1900 nm. Output power up to 5W, and spectral width ≈ 2 MHz, low RIN and intensity noise, and excellent OSNR. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

PHOENIX-2040+ Dual-mode CW or ns pulsed. Narrow linewidth (<50kHz) laser deliver Pave up to 20W, Ppeak 130W, and 0.5uJ pulses at 50ns and 2MHz frequency rep. rate. PRF 100kHz to 4MHz, pulse width 20ns to 1us. Control interface USB.

pdf-icon1OEM Data Sheet

RFQ

MAKO-NL-1900 Wavelengths 1850 to 2000nm. Output power > 1W, low RIN and intensity noise and excellent OSNR. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAKO-NL-2000 Wavelengths 2000 to 2100nm. Output power > 0.5W with a sub-MHz linewidth range, low RIN and intensity noise and excellent OSNR. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

PRISM-2000 MAKO Module Wavelengths 1800 to 2020nm. Output power 1W. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

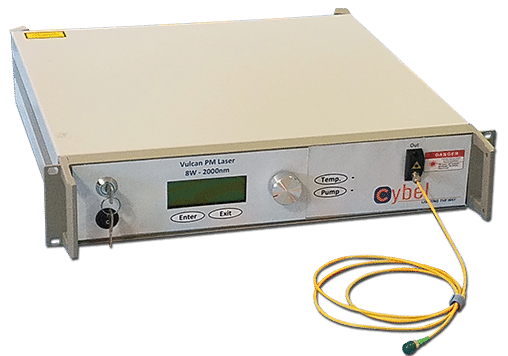

VULCAN-2000 Thulium doped fiber lasers, wavelength range 1800 to 2050nm. Output power up 10W. Control mode ACC, and control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MAGNI-NL-2000 Thulium doped fiber lasers, wavelength range 1900 to 2050nm. Output power more than 10W. Control interface RS-232 and USB.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

ASTROLIGHT-1950 Pave 5W and Ppeak 5kW. Pulse width 4-12ns, PRF 100kHz-1.5MHz with high pulse energy up to 20uJ. Control interface RS-232 and USB.

pdf-icon1OEM Data Sheet

RFQ

SOPRANO-1800 Tunable laser from 1750 to 1850nm. Output power >1W. Output signal linewidth of 0.05nm. Control interface RS-232.

pdf-icon1BT Data Sheet

RFQ

TENOR-2000 Tunable laser from 1900 to 2050nm. Output power >1W. Output signal spectral width of 0.05nm. Control interface RS-232.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

ORION-2000 - Single frequency narrow linewidth (10 kHz) DFB  Fiber Bragg Grating (FBG) laser emitting in the range of 1900 to 2050 nm.

pdf-icon1OEM Data Sheet

RFQ

PHOENIX-2040 Dual-mode CW or ns pulsed. Narrow linewidth (<50kHz) laser deliver Pave 1W, Ppeak 10W, and 0.5uJ Pul50ns pulses and 2MHz frequency rep. rate. PRF 100kHz to 4MHz, pulse width 20ns to 1us. Control interface USB.

pdf-icon1BT Data Sheet

RFQ

ASE Sources

OEM

BT

MIR-ASE-1800 This amplified stimulated emission (ASE) Wavelength source from 1700 to 1800nm. High output power 500mW.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MIR-ASE-1900 This amplified stimulated emission (ASE) Wavelength source from 1800 to 1900nm. High output power 500mW.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

MIR-ASE-2000 This amplified stimulated emission (ASE) Wavelength from 2000nm to 2100nm. High output power 500mW.

pdf-icon1OEM Data Sheet

pdf-icon1BT Data Sheet

RFQ

Laser Accessories

Cybel offers heat sinks for OEM MAKO and SKYLINE fiber amplifiers and lasers.
High power attenuators, self heterodyne linewidth measurement systems are available.

RADIANT: is a passive heat sink designed for MAKO OEM module, either for amplifiers or lasers. It dissipates power up to 20W.

pdf-icon1Data Sheet

RFQ

VORTEX: is a forced-air heat sink designed for MAKO OEM module, either for amplifiers or lasers. Vortex heat sink uses an air forced design that stabilizes the operating temperature of the Mako and dissipates power up to 20W.

pdf-icon1Data Sheet

RFQ

IKARUS: is a forced-air heat sink for the OEM SKYLINE module, either for amplifiers or lasers. This module is designed for tabletop applications. It is an air-cooling design that stabilizes the temperature of the Skyline and can dissipate power up to 170W.

pdf-icon1Data Sheet

RFQ

POLAR: is a liquid cooling plate system designed for SKYLINE OEM amplifiers or lasers. This module has a cooling capacity of 300W.

pdf-icon1Data Sheet

RFQ

GLOW is a passive heat sink for SKYLINE OEM module, either for amplifiers or lasers. It dissipates power up to 170W.

pdf-icon1Data Sheet

RFQ

ARCTIC-1550 is a benchtop self-heterodyne system with a bandwidth from 1510 to 1580nm. This system measures linewidth, stability in time with an electrical spectrum analyzer (ESA) under two modes: CW and pulse.

pdf-icon1Data Sheet

RFQ

ARCTIC-1064 is a benchtop self-heterodyne system with a bandwidth from 1020 to 1100nm. This system measures linewidth, stability in time with an electrical spectrum analyzer (ESA) under two modes: CW and pulse.

pdf-icon1Data Sheet

RFQ

PLUTO is a High Power Attenuator benchtop unit for fixed attenuation of 20, 30,40 & 50dB for 1064nm, 1550nm, and 2000nm bandwidth; It is ideal for high-power fiber output attenuation.

pdf-icon1Data Sheet

RFQ
